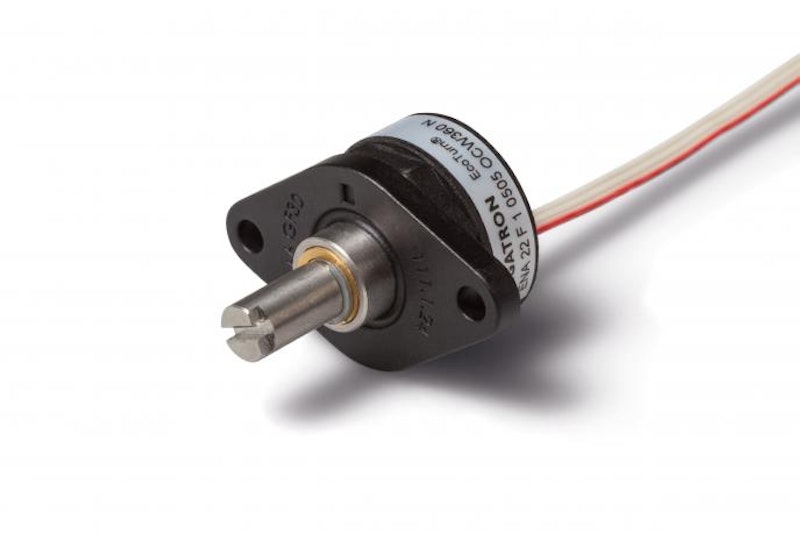

ENS22F - Flange mount sensor SSI signal

ENS22F – Flange mount sensor SSI signal

The Series ENS22F closes the gap between potentiometric sensors and high end sensors with ball bearings. Due to the easy connection of the flat ribbon cable, e.g. using IDC, the cost of soldering can be reduced as well.

Resolution: Absolute 12 bit
Measurement Range: Singleturn
Output Signal: Serial
Protection Class: Up to IP65
Technology: Hall effect
Shaft diameter: 6,00 mm
Shaft type: Solid
Housing diameter: 22 mm
Connection type: Ribbon cable
Special Features
  • Analog output: SSI- Interface (SPI redundant on request)
  • Electrical angle 360°
  • Supply voltage: 9..30 V
  • Life time expectancy > 25.000.000 shaft revolutions
