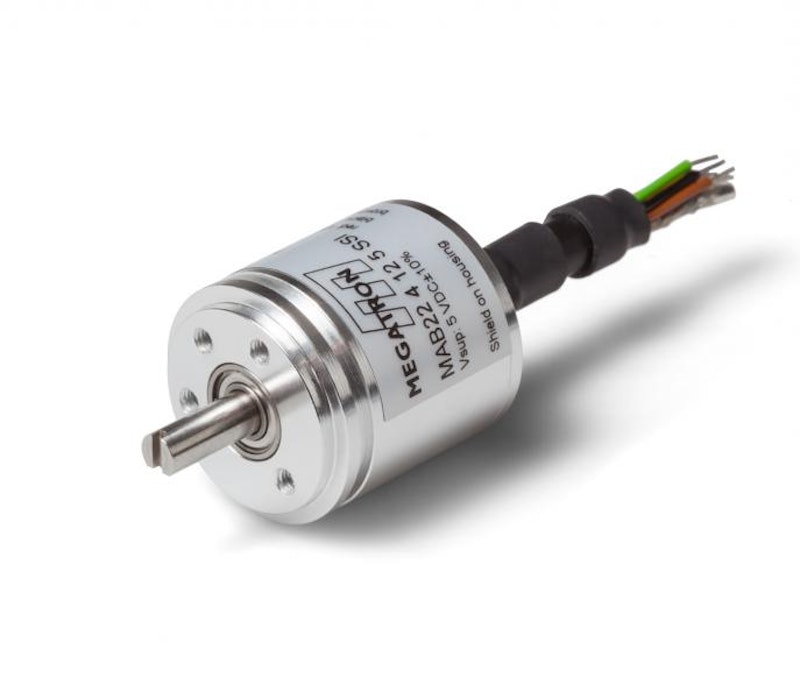

MAB22APM - Hall-Effect Multiturn Absolute Encoder

MAB22APM – Hall-Effect Multiturn Absolute Encoder

Key Data

Resolution: Absolute 12 Bit
Protection Class: Up to IP65
Technology: Hall Effect
Measurement Range: Multiturn
Output Signal: Analog

Special Features

  • Start and end points easily set in field via dry contacts 10° to 200 x 360°
  • Ø22 mm housing with servo-mount flange
  • 12 bit resolution
  • Analog output: 0..10 V
  • Supply voltage 16..30 V
  • Ball bearings

For more info and operating instructions click here
